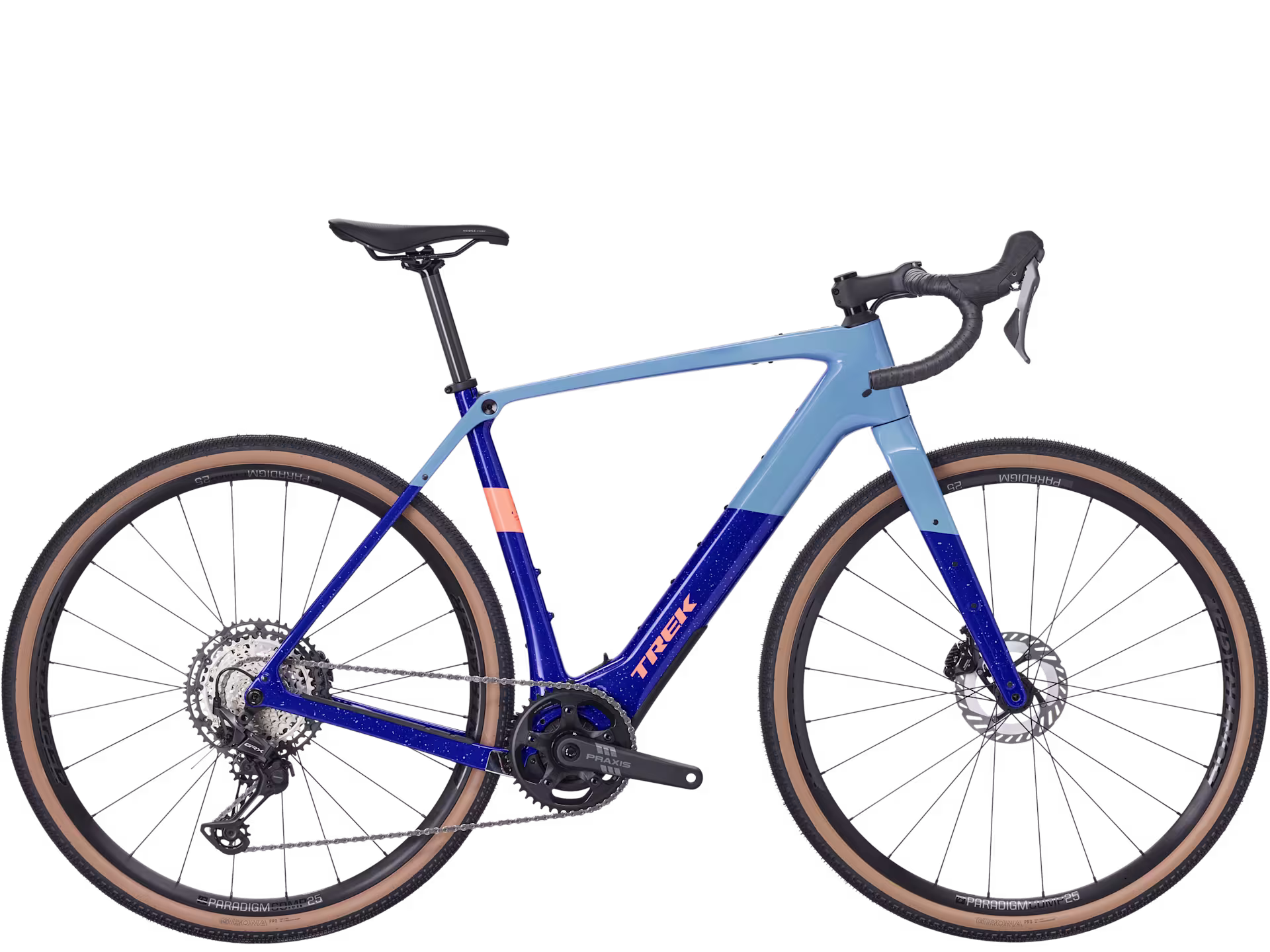

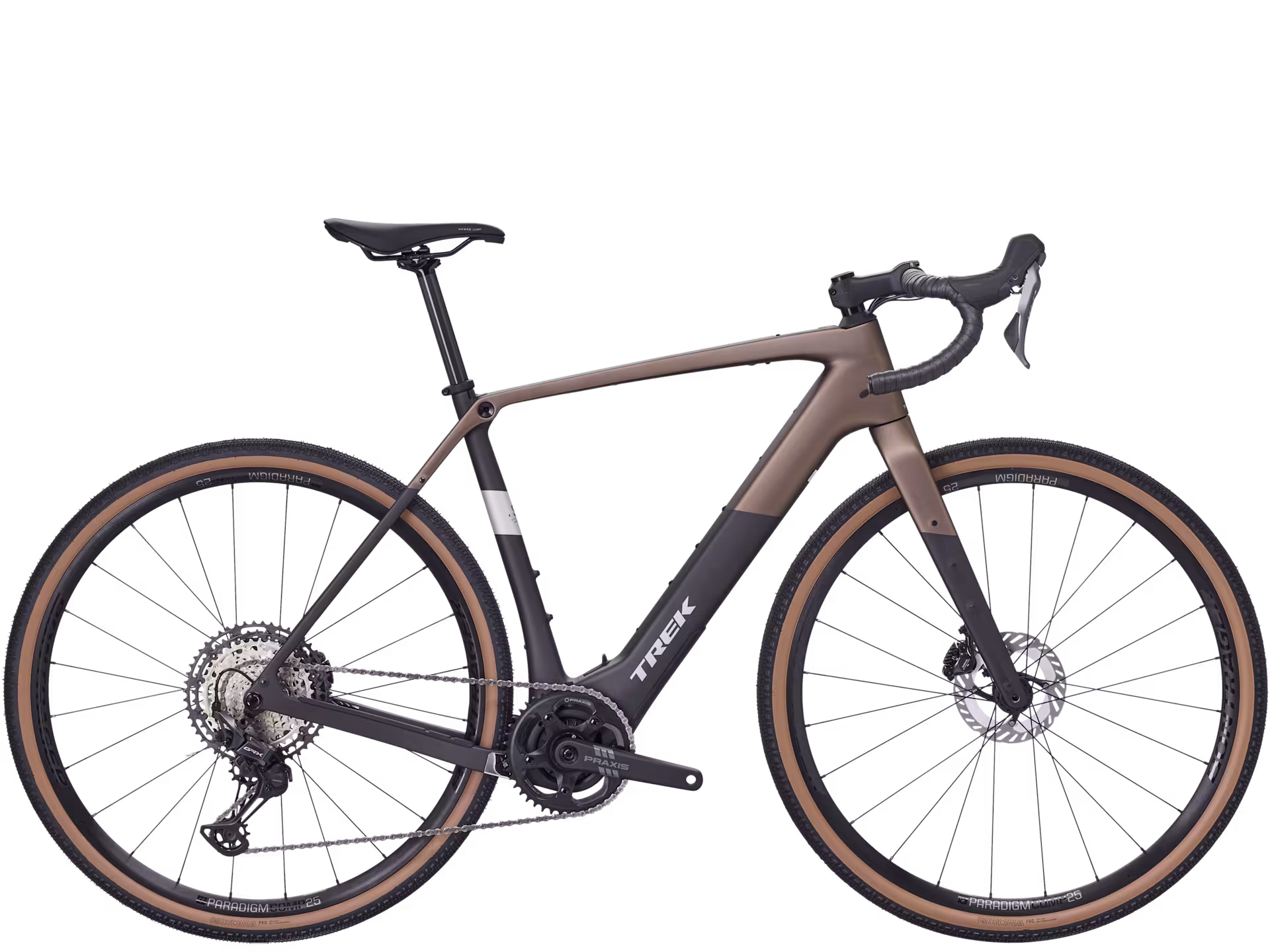

TREK Checkpoint + SL 5 2026
he Checkpoint+ SL 5 is an electric gravel bike built to take you the distance. You get a TQ HPR60 motor with a smooth and quiet boost and a 360 Wh battery that keeps going on your biggest rides. It comes ready to roll with an OCLV Carbon frame, durable alloy wheels, 12-speed Shimano GRX 1x shifting and endurance geometry to keep you comfortable for the long haul.
Pricing
£4500.00
| Model Year | 2026 |
|---|---|
| Options | Extra Small Small Medium Medium/Large Large Extra Large |
| Frame | 500 Series OCLV Carbon, TQ drive system, IsoSpeed, hidden mudguard mounts, rack mounts, integrated frame bag mounts, invisible cable routing, flat-mount disc, integrated chainkeeper, UDH, 142x12 mm chamfered thru axle |
| Forks | Checkpoint full carbon, tapered carbon steerer, mudguard mounts, triple rack mounts, flat-mount disc, 12x100 mm chamfered thru axle |
| Rear Derailleur | Shimano GRX RX822, 51T max cog |
| Shifters | Shimano GRX RX820, 12-speed |
| Chainset | Praxis Alloy, 165-172.5 mm length (size dependant) |
| Freewheel | Shimano XT M8200, 10-51, 12-speed |
| Chain | Shimano XT M8100, 12-speed |
| Stem | Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70-100mm length |
| Handlebars | Bontrager Elite Gravel, alloy, 40-46 cm width (size dependant) |
| Front Brake | Shimano GRX RX820 hydraulic disc, Shimano CL800, CentreLock, 160 mm |
| Rear Brake | Shimano GRX RX820 hydraulic disc, Shimano CL800, CentreLock, 160 mm |
| Rims | Bontrager Paradigm Comp, Tubeless Ready, 25 mm rim width |
| Front Hub | Bontrager Paradigm Comp, 100x12mm thru axle |
| Rear Hub | Bontrager Paradigm Comp, 142x12mm thru axle |
| Tyres | Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42 mm |
| Saddle | Verse Short Comp, steel rails, 145 mm width |
| Seatpost | Bontrager carbon, 27.2 mm, 8 mm offset, 330 mm length |
| Motor | TQ-HPR60, 60 Nm, 250 watt maximum continuous rated power, 350 watt peak power |
| Battery & Charger | TQ 360Wh battery TQ 4A charger |
| Display | TQ LED display with Bluetooth & ANT+ connectivity |
As with any product, specification is subject to change without prior notification. You are advised to confirm current specification and availablity before buying.
